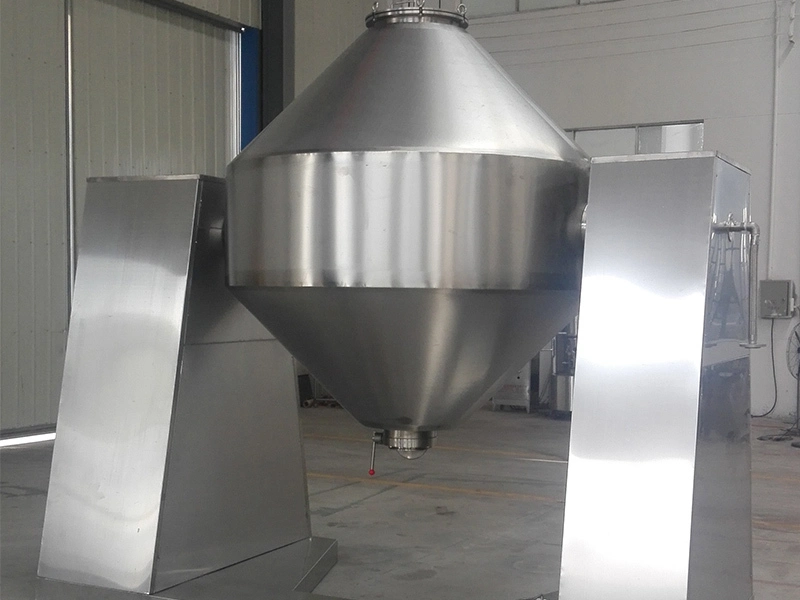

Conical Mixer
Conical mixer uses a rotating conical vessel and axial mixing motion to produce uniform blending of powders, granules, and pastes while minimizing shear and heat generation to protect sensitive ingredients. Suitable for lab-scale to production batches, it shortens cycle times, streamlines loading and discharge, and reduces batch-to-batch variability to increase overall process efficiency.
Main performance
Through the vacuum conveyor for the machine,send the powder or grain state materials into the double-taper container,or send the materials into the container manually.
As the container rotates continuously,the materials moves complexly in the container so as to get the uniform mixing.
Technical parameters
| Model | Total volume (m) | Production capacity (Kg/批) | Mixing time/min) | Revolution of cylinder(rpm) | Power (Kw) | Overall dimension (mm) | Rotation height (mm) | Weight (Kg) |
| 180 | 0.18 | 40 | 4-8 | 12 | 1.1 | 1400×800×1850 | 1850 | 280 |
| 300 | 0.3 | 60 | 6-10 | 12 | 1.1 | 1685×800×1850 | 1850 | 310 |
| 500 | 0.5 | 100 | 6-10 | 12 | 2.2 | 1910×800×1940 | 1950 | 550 |
| 1000 | 1.0 | 200 | 6-10 | 12 | 4 | 2765×1500×2370 | 2460 | 810 |
| 1500 | 1.5 | 300 | 6-10 | 12 | 4 | 2960×1500×2480 | 2540 | 980 |
| 2000 | 2.0 | 400 | 6-10 | 12 | 7.5 | 3160×1900×3500 | 3590 | 1500 |
| 2500 | 2.5 | 500 | 6-10 | 12 | 7.5 | 3386×1900×3560 | 3650 | 2150 |
| 3000 | 3.0 | 600 | 6-10 | 7.8 | 7.5 | 4450×2200×3600 | 3700 | 2500 |
| 4000 | 40 | 800 | 6-10 | 7.8 | 11 | 4750×2500×3680 | 3730 | 3200 |
Contact us to customize machines, We are committed to forging great equipment with craftsmanship, protecting health with technology, bringing Chinese equipment to the world, and contributing to global health.
