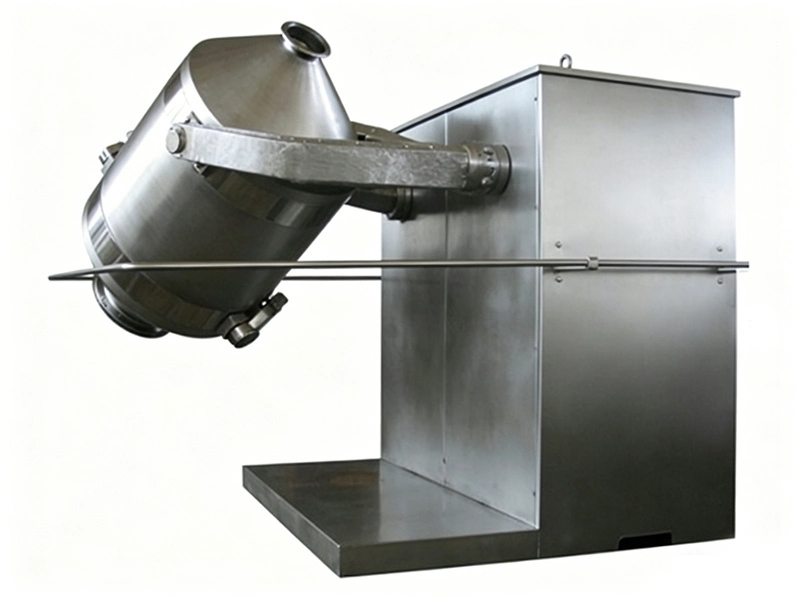

Three-Dimensional Mixer
Three-dimensional mixer uses multi-axis tumbling and orbital motion to achieve fast, uniform blending of powders, granules and pastes with adjustable speed and programmable cycles for precise process control. Enhanced homogeneity reduces rework and batch variability, shortens processing time and simplifies scale-up for production lines.
Main performance
Mixing barrel is suspended on ends of driving and driven axles through two Y type universal joints that are crossing and vertical to each other in the space.When driving axle is driven to rotate,universal joint makes the barrel perform composite motion including horizontal moving.rotating and turning etc,in the space,by which,materials also pertorms3-dimensional motion inside the barrel.Several kinds of materials inside the barrel flow. diffuse,penetrate each other and finally form uniform status.
Technical parameters
| Type | SYH-5 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1500 |
| Material barrel volume(L) | 5 | 100 | 200 | 400 | 600 | 800 | 1000 | 1500 |
| Max loading volume(L) | 4 | 80 | 150 | 300 | 450 | 600 | 750 | 1200 |
| Max lading weight (kg) | 5 | 80 | 150 | 200 | 300 | 400 | 500 | 750 |
| Spindle rotation speed (r/min) | 24 | 15 | 12 | 10 | 10 | 10 | 10 | 10 |
| Motor power (kw) | 0.37 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 |
| Overall dimensions (mm) | 600×1000 ×1000 | 1200×1800 ×1500 | 1300×1600 ×1500 | 1500×2200 ×1500 | 1850×2500 ×1650 | 1900×2400 ×2100 | 1950×2500 ×2400 | 2600×2500 ×2350 |
| Weight (kg) | 150 | 500 | 750 | 1200 | 1500 | 1650 | 1800 | 2500 |
Contact us to customize machines, We are committed to forging great equipment with craftsmanship, protecting health with technology, bringing Chinese equipment to the world, and contributing to global health.
