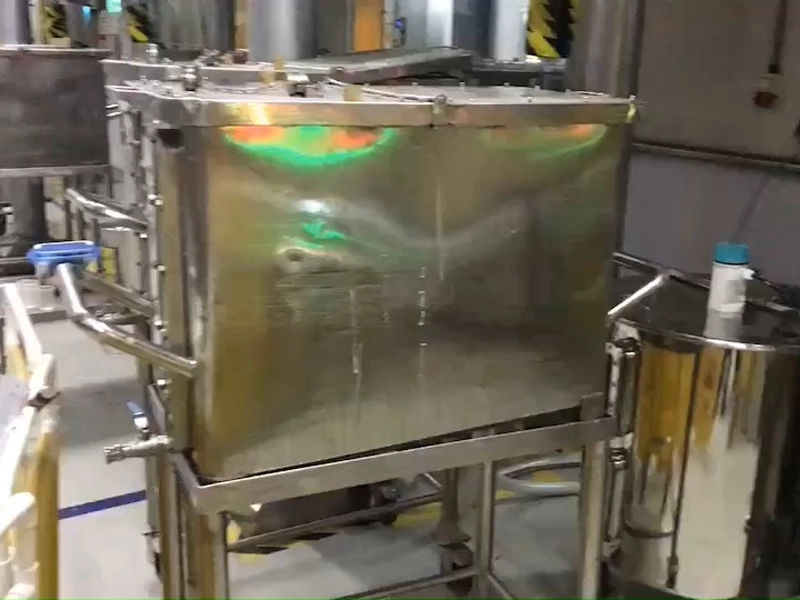

GF150 Box-type tubular centrifuge
According to the diversity of materials, particularity, we design the box type tubular separator, this model is not contact with the outside world, can accomplish all airtight effect, and increases the frequency control of motor speed, contact with the material of the sealing device fully adopt silicon rubber, nitrogen protection device, has the properties such as safe and reliable, high-definition,beautiful.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Main performance
Rotary speed
1400rpm
Structure
Full-closed structure
Protection
Nitrogen protecting
Sealing ring
Silica-rubber seals
Speed regulation
Variable-frequency speed regulating
operation
Safe & reliable operation
appearance
Beautiful appearance
Technical parameters
| Items | Models | |
| BTCSGQ/F150 | ||
| Bowl | Diameter(mm) | 150 |
| The Effective Height (mm) | 730 | |
| Bowl Volume(L) | 10 | |
| Speed of Rotation(r/min) | 14000 | |
| Separation Factor(w²r/g) | 14300 | |
| Working pressure(MPa) | ≥0.05 | |
| Through Output Capacity for Clean Water(L/h) | 3000 | |
| Motor Power(kW) | 4.0 | |
| Dimensions (L×W×H)(mm) | 900×550×1600 | |
| The weight(Kg) | 665 | |
