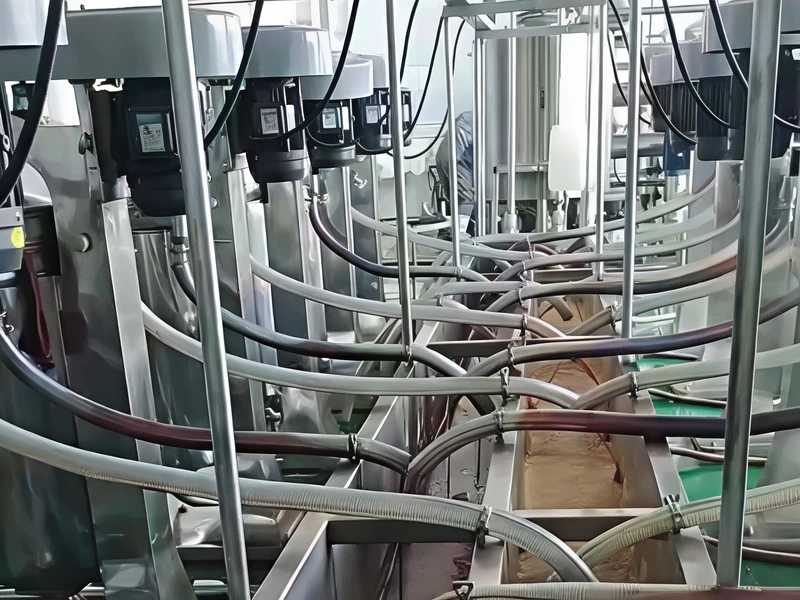

GF Tubular centrifuge

GF SERIES: Used for separating various emulsions, especially for liquid- liquid separation with a small proportion of two-phase and liquid-liquid- solid separation with a small amount of impurities, such as transformer oil, turbine oil,lubricating oil, fuel oil, dye, grease, saponification, all kinds of powder materials, all kinds of oral liquid, all kinds of pharmaceutical liquid, 920 separation; Separation of plasma biological drugs and extraction of plasma from animal blood; Edible oil, CAI pan soak liquid, tea Phenol, soybean concentrated phospholipid refining, oil and water separation and sewage treatment.

Inquiry

Write a Review

Working Principle

Tubular Centrifuge consists of machine body, driving part, bowl, liquid collecting tray and liquid inlet bearing seat etc. On top of the bowl is the flexible spindle and at the bottom is the damping floating bearing. The spindle is coupled with driven wheel by buffer on the coupling seat.

The motor transmit power to the driven wheel through drive belt and tension wheel, thus for the blow to rotate around its own axis at high speed, to form a strong centrifugal force field. The material is injected inside from the liquid inlet at the bottom, and the centrifugal force compels the clarification liquid to flow upwards along the inner wall of bowl, and the clarification liquid flows out from the outlet. The solid deposit in the bowl and it will be discharged by manual after the machine is shut down.

Technical parameters

There will no further notification if the appearance or parameters of our products are modified. Thanks.

Items	GF75/GQ75	GF105/GQ105	GF125/GQ125	GF150/GQ150
Diameter/mm	75	105	125	150
Height/mm	450	730	730	730
Volume/L	2.2	6	8	10
Rotation/min	19200	16300	15000	14000
Working Pressure	≥0.05MPa
Water Flow/L	500/600	1200	2000	2500/3000
Gross Power	1.5	3	4	4
Dimension	7604501120	8405001600	9005501600	9005501600
Weight	300	570	610	665

Details Images

B-2 (6)

B-3 (7)

Applicant

It is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micropowder, extract liquid from plants, separation of plasma and cell,separation of milk cream.

● Oil separation(Avocado oil,Biodiesel, Coconut oil ,vegetable oil degumming ,de-soap, dewater, oil and water separation etc)

● Clarifying process for liquid solid product (oral liquid)

● Extraction of protein, seaweed and jelly(plant extraction, herb extraction,pigment extraction)

● Refined molasses

● Separation of blood

● Settlement of bacteria (yeast, E.coli, lactobacillus, bacillus subtilis, nitrobacter etc)

● Purifying paint, dye, various resin

● Processing of granular, crystalline and fibrous suspensions

● Separation of filterable and non-filterable sludge.

Packing & Delivery

Delivery time

30 days after prepayment.

Terms of payment

30% T/T deposit, 70% T/T before delivery or irrevocable L/C at sight.

Package

Wooden case with strong seaworthy export packing.

Warranty

Guarantee 12 months after installation and commissioning.
