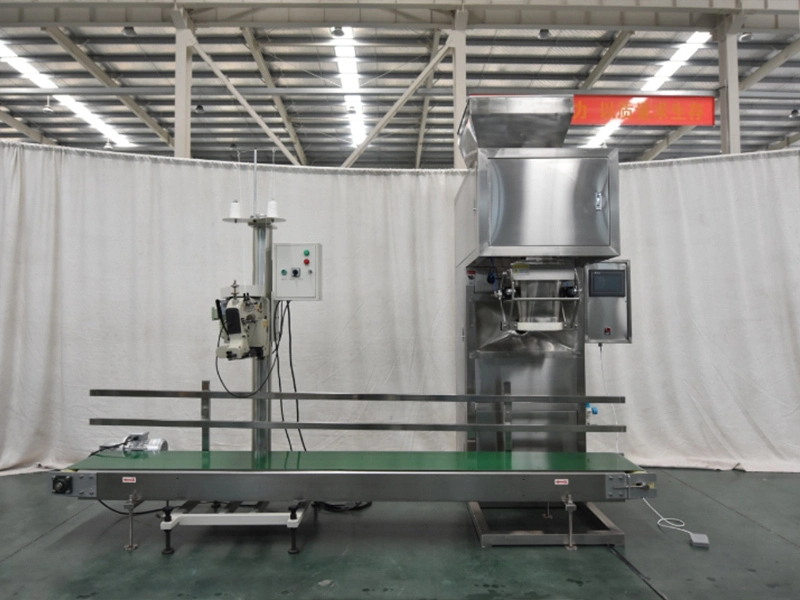

5-50kg large packing granule weighing filling and packing machine
Ideal for quickly and accurately filling 5–50 kg bags of free‑flowing granules such as fertilizers, animal feed, seeds, grains, plastic pellets, and industrial granules across agriculture, chemical, food processing, and construction material plants. Use it as a standalone packing station or integrated into automated production and logistics lines for high‑throughput weigh‑fill operations with open‑mouth or valve bagging, co‑packing, warehouse dispatch, and contractor batching. Built for factory environments, it supports dust control and hygienic contact parts for sensitive products, reduces manual labor, and ensures consistent, traceable packaging for distribution and retail.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Main performance
Machineis suitable for thequantitative packing of granular, granular powder mixing, strip, block and smokefilaments. Such as fertilizer, feed, plastic particles, Chinese medicine granules,premix, washing powder, leisure small food, candy, melon seeds, peanut, salt, MSG,chicken essence, seeds, grain quantitative filling packaging, hardware and other granular materials.
Adopt the weighing measurement of the clamping bag, the gate discharge,more energy saving energy saving. PLC control technology, simpleoperatio. Independent suspension sensor, signal transmission stability, ensure the weight accuracy.The host operation interface adopts electronic screen or LCD touch screen tofacilitate customer selection. Main engine, transmission belt, sewing machine,controller network, ensure the humanization operation reduces labor intensity.The weighing control system is designed according to the requirements of IP54(dustproof and waterproof).
Technical parameters
| Machine name | XL-DGS-50k/50kc | XL-1DC-25K/50K | XL-2DC-25K/50K | XL-2DC-50KPD |
| Metering range | 5-50kg | 5-25kg/50kg | 5-25kg/50kg | 5-50kg |
| Packaging accuracy | ±0.2-0.5% | ±0.2-0.5% | ±0.2-0.5% | ±0.2-0.5% |
| Filling speed | 4-8bag/min | 5-10bag/min | 10-20bag/min | 10-20bag/min |
| Weighing way | Pneumatic valve | one hopper weighing | Double hopper weighing | Double hopper weighing |
| Air pressure/ Gas consumption | 0.6Mpa/1m³ | 0.6Mpa/1m³ | 0.6Mpa/1m³ | 0.6Mpa/1m³ |
| Voltage・Power | AC380V/50HZ/1.1KW | AC380V/50HZ/1.2KW | AC380V/50HZ/1.5KW | AC380V/50HZ/1.5KW |
| Machine size : mm L*W*H | 980*850*2620 | 950*1000*2700 | 1500*1200*3000 | 1800*1500*3000 |
