Automatic powder filling production line series

Special point

● The whole machine is made of stainless steel, and allmachine structures are designed according to the food and drug hygiene standards.

● The whole line equipment is designed according to the GMP standard, and fully meets the national food and drug healthrequirements. Realize the full automatic movement of the assembly line, ensure that the personnel will not touch the productduring the whole production process, and the production process is completely transparent and more reliable.

● The inner wallof the container contacting with the material is polished, and the structure of the regular disassembly adoptsthe easy to dismantle parts to connect, ensure the handover or change the product to handle the health convenience.

● Can visit the factory and design the best production plan in the field: Provide othertechnical supportforthe production line free of charge.

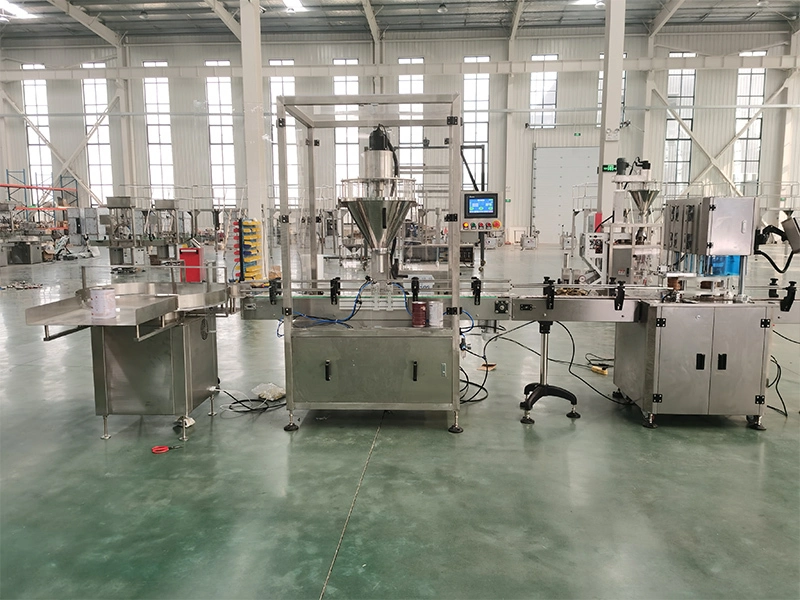

Full-automatic powder can filling line

Automatic powder filling machine series products

Application

This machine is suitable for automatic filling and filling of various powders and powder mixtures, automatic positioning and filling, filling and conveying automatically. Widely used in milk powder, rice powder, protein powder, cocoa powder, chicken essence, chicken essence,monosodium glutamate, medicine powder, food additive, dye, flavor and other kinds of bottled and canned products.

Features

● Complete stainlesss teel, meet the requirements of drug GMP certification and food hygiene certification;

● Containers, drums, bottles and other packaging containers are applicable;

● LCD touch screen in both Chinese and English, the packing weight can be adjusted at any time;

● The filling adopts servo motor, which has the advantages of high precision, fast speed, large torque, adjustable speed, and good stability;

● Gear reduction motor is used for stirring: low noise and maintenance.

● Cooperate with feedingmachine, automatically replenish materials and stop the material automatically;

● Replace the screw part. The sameequipment can meet the requirements of different specifications.

Technical parameters

XL-FZX Series of linear powder filling machine. Adopts cylinder block positioning container.

XL-FZP series powder filling machine. Using rotary table positioning container.

XLFCZ series online weighing powder filling machine

Using online weighing filling technology to ensure high precision filling of products, the erroris lessthan or equal to 1 gram. All the equipmentis sealed with organic glass, the materialis clear and clear, the dustis not leaked, andthe outlet is filled with dust collecting device to protect the workshop environment.

XL-GD8-2FCZ double-head powder+weighing and feeding bag packaging machine

This machine is mainly composed of a bag-type automatic packaging machine and a twin-screw combination weighing machine. It can be used for high-precision weighing and packaging of powder materials of 100-1000 or 500-2500 or 1000-s000 grams, with high accuracy. The device can quickly change the specification of the packaging bag, and the width of thebag clamping claw device can be automatically and quickly adjusted by inputting the bag width through the touch screen.

The machine is equipped with a standard detection device, which can detect that the filling device will not be filled and theheat sealing device wilnot be sealed when the machine has no packaging or the packaging bag is not opened, so as toavoid waste of packaging materials and raw materials.

Work flow chart

● Manually print the code on the bags (or use machine ribbon coding), place them in the bag hopper (bag hopper adjustment is manual), and measure the bag width. Input the bag width via the touchscreen, and the equipment automatically adjusts the width of the bag clamping claws.

● First station: Automatically sucks up the bags and feeds them into the rotary bag clamping claws.

● Second station: Ribbon coding.

● Third station: Automatic bag opening (simultaneous opening from top and bottom with air blowing assistance from above).

● Fourth station: Servo screw feeds material for rough filling. A dust collector is installed at the filling position to remove dust generated during filling.

● Fifth station: Bags are removed and weighed, and the weighing data is fed back to the PLC, which automatically calculates the amount of material to be added at the next station. This station also has a dust collector to remove dust escaping from the bag opening.

● Sixth station: Based on the weighing data from the previous station, a small amount of material is added. Servo screw filling is also used, and a dust collector is installed to remove dust generated during filling. 8. At the seventh station, straighten the bag opening and proceed to the heat sealing position. Before sealing, vent the air and then seal the bag.

Technical parameters

XL-GD8-F Automatic upper bag type powder packaging machine

● Itis controlled by Siemens PLC of Germany, and itis easy to operate with the touch screen man-machine interface control

system.

● The machine USES the frequency conversion speed control device, can adjust the speed at will within the specified range.

● Automatic detection function. if the bag is not opened or the bag is not complete, no feeding. no heat sealing, the bag canbe used again, not waste material, save the production cost for the user.

● The temperature is adjusted by PLC and can be changed on the touch screen according to the packaging bag.

● The machine USES the stop brake function, it can play the safety protection function when the machine stops

● This machine adopts imported engineering plastic bearing without refueling and maintenance, reducing the pollution ofmaterials.

● The machine and material contact parts are made of high quality stainless steel, which conforms to the hygienic standardof the food processing industry.

Technical parameters
