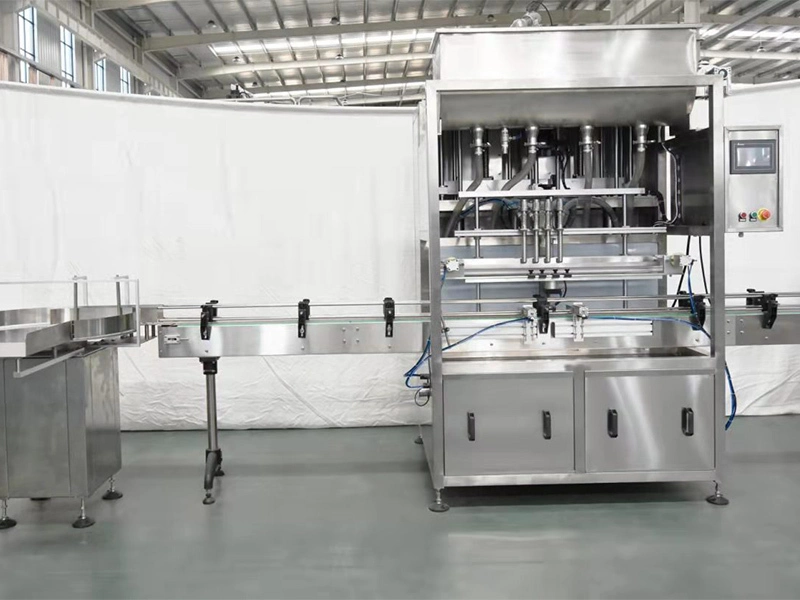

Automatic liquid filling line
This filling line mainly consists of filling screw cap machine, the aluminum foil sealing machine and theautomatic labeling machine, with a total length of 5 meters. Assembly line suitable for small doses of liquid.
The production line is mainly composed of unscramble bottle machine, filling machine, Screw cap machine and Labelingmachine. Using PLC programmable control, with 6 "touch screen man-machine interface system,Automatic into the botle,automatic filling, automatic out of bottle, No bottle without filling. The counting function. Can be used in all kinds of bottles(including shaped bottle) filling. The submersible filling system is configured to ensure that the filling process is not foamedor dripping.
The production line is mainly composed of unscramble bottle machine, filling machine, Screw cap machine and Labelingmachine. Using PLC programmable control, with 6 "touch screen man-machine interface system,Automatic into the botle,automatic filling, automatic out of bottle, No bottle without filling. The counting function. Can be used in all kinds of bottles(including shaped bottle) filling. The submersible filling system is configured to ensure that the filling process is not foamedor dripping.
The contact parts of the material are made of high quality stainless steel conforming to GMP standard Widelyused in food, medicine, chemical industry, daily chemical industry, such as oral liquid, juice, soy sauce, vinegar, mineral water,disinfectant, etc.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Equipment features
● Touch operation color screen, can show production status, operating procedures, filling methods, etc.
● The XL-L type is suitable for flling of containers of different specifications, and can switch the flling specifications within minutes.
● Each filling head is equipped with a clamping device to ensure the accuracy of the injection.
● Replacement of filling specifications need not add equipment, just make adjustment can be completed.
● Users can select the filling number according to their own productioncapacity, determine the filling machine head count.
Technical parameters
| Machine name | XL-L4 | XL-L6 | XL-L8 | XL-L12 | XL-L16 |
| Metering range | 40-1000ml | ||||
| Filling accuracy | ±1% (>100ml) | ||||
| Filling speed | 0-900bottle/H | 0-1500bottle/H | 0-2400bottle/H | 0-3600bottle/H | 0-4800bottle/H |
| Air pressure | 0.5-0.7mpa | ||||
| Gas consumption | 200L/t | 200L/t | 200L/t | 400L/t | 400L/t |
| Voltage·Power | 380V50HZ.1.0KW | 380V50HZ.1.0KW | 380V50HZ.1.0KW | 380V50HZ.1.5KW | 380V50HZ.1.5KW |
| Weight | 260kg | 260kg | 260kg | 400kg | 500kg |
| Overall dimensions (L*W*H)cm | 400*80*210 | 400*80*210 | 400*80*210 | 600*83*220 | 600*83*220 |
