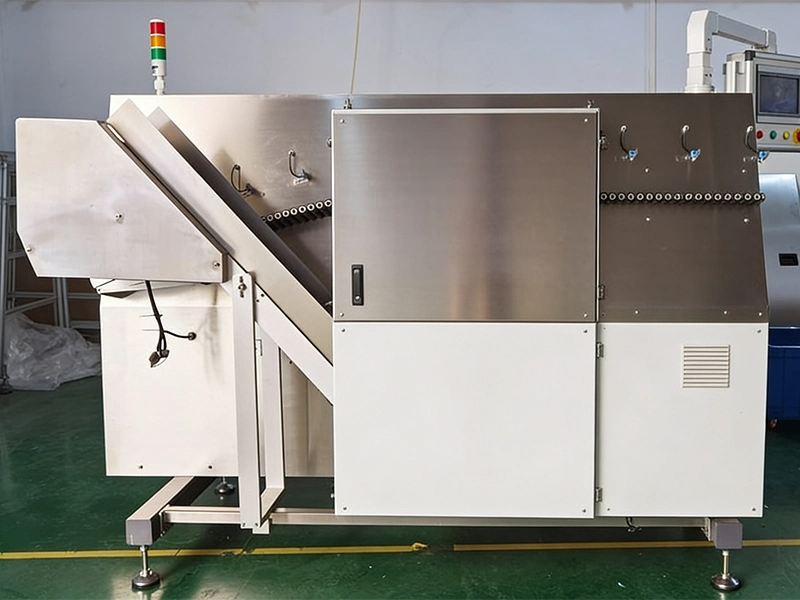

WXLD-200 Fully automatic disordered sorting packing machine
Automatic bedding bag machine can be used in the production of single, also can and after secondary packaging machine such as box packing machine, packaging machine, packing machine, complete the accumulation of random material placed from a centralized to spread to the whole finishing process.
After the irregularly piled materials are poured into the storage silo, the silo conveyor belt operates, transporting the materials onto the low-speed rollers. The equipment feeds the materials out of the bag arranging machine one by one in sequence through the operation of low, medium and high-speed rollers. The materials sent out enter the carton machine for conveying in the form, sequence or stack required for packaging to complete the secondary packaging process of the next procedure.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Performance characteristics
● Feeding, bedding bag integration design, simple structure, compact appearance generous;
● The large capacity storage bin, convenient loading.
● At the bottom of the bin configuration conveyor belt, to facilitate loading, while avoiding material residues.
● Material conveyor roller by multiple sets of servo drive and speed regulation through the photoelectric sensor feedback signal, control precision, fast bedding bag.
● Through the servo control method realizes automatic arrangement, orderly stacked servo system to realize the material more rules, process stability control.
● The whole process to realize dispersion, sequence, stacked, process without human intervention.
● A variety of combinations, can need according to speed increase or decrease in number of bedding bag machine, single machine also can complete the sorting process.
● Servo system control, high precision, convenient operation, high automation.
Technical parameters
| Item | Parameter | Remark |
| Max.speed | 200/Min (based on the product) | |
| Bag specification | L≤200mm；W≤100mm（customizable） | |
| Power | 4.8kW | |
| Supply | 220V 50/60Hz | |
| Overall dimension | 2800（ L）×1130（ w)×1800(H) |
B-1
