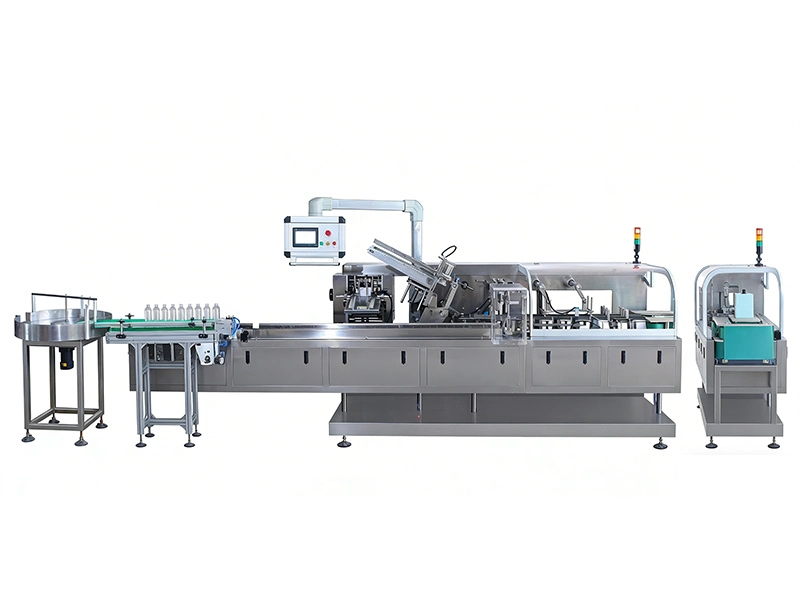

BZX-130P Fully automatic bottle and box production line
BZX-130P fully automatic bottle and box production line integrates filling, capping, labeling and case packing under PLC coordination with servo-driven changeover for precise dosing and configurable throughput across a range of bottle formats. Minimizes manual handling and cycle times while enhancing product traceability and consistency, lowering overall production costs and simplifying regulatory recordkeeping.
the structure of the main performance characteristics
● Using automatic feed, open box, into the box, batch number, seal box, carved waste such as packaging, compact structure and reasonable, easy operation.
● Servo/step motor and touch screen, PLC programmable control system, man-machine interface shows more clearly the operation is simple, high degree of automation, more humane.
● Tracking system using photoelectric automatic detection, no box empty bags, utmost ground saves packaging materials.
● Large range of packaging, convenient adjustment, which can realize fast conversion between all kinds of size.
● Change specifications without mould replacement, need adjustment can be realized, speed and finished counting PLC automatic display boxes used items into box does not reach the designated position automatic stop and main drive motor overload protection device, apply more safe and reliable;According to customer requirements, using the type safety guards, easy to operate, beautiful appearance.
● With blister packing machine, pillow packing machine, three dimensional packaging machine, bottle line, filling machine, labeling machine, printing machine, the online weighing apparatus and other production lines and other equipment to realize linkage production.
● Can be in accordance with the requirements of packaging design various automatic feeder and into the box system.
● According to the customer request matching hot melt adhesive machine adopts hot melt adhesive glue sealing box and mechanical brush glue sealing box.
Technical parameters
| Model | BZX-130P | |
| Packaging speed | 30-100 Quantity /min | |
| Paper box size range | L(80-260)mm×W(40-140)mm×H(15-85)mm | |
| Paper requirements for the paper box | 250-450g/m3 | |
| Instruction book | Quality requirements | 60－70g/m2 |
| Unfolded size range | (80－250) X (90－170)mm | |
| Folding range | (1－4)Fold | |
| Motor power | 3KW | |
| Power types | Three-phase four-wire 380V 50Hz | |
| Machine noise | ≤80dB | |
| Gas source | 0.5-0.8 Mpa | |
| Gas consumption | 120-160L/min | |
| Overall dimensions | Approximately 4500×1360×1750 mm (Standard model. The length can be customized according to customer requirements) | |
| Total weight | 1800Kg | |
