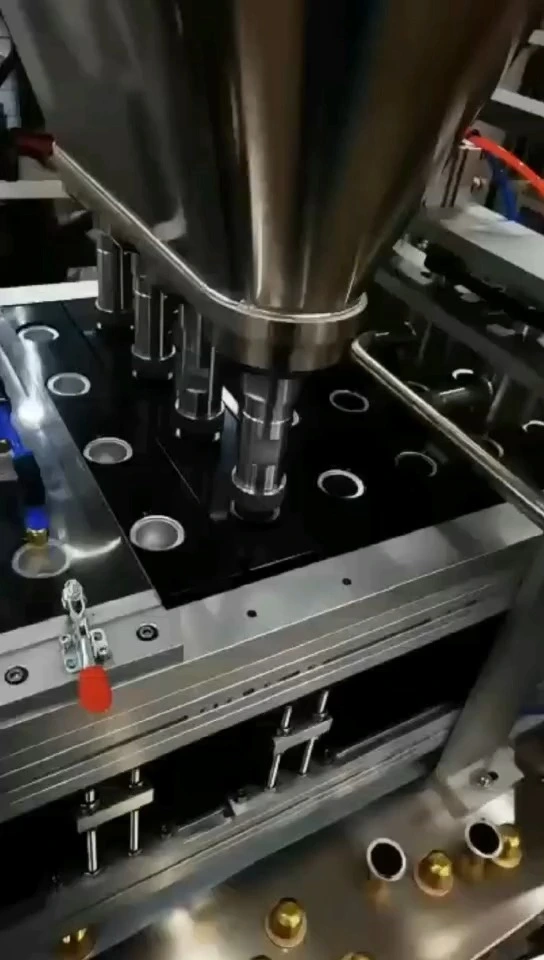

Fully automatic linear four-station sheet coffee capsule filling machine
Fully automatic linear four-station sheet coffee capsule filling machine integrates synchronized feeding, dosing, tamping and sealing stations with PLC and servo drives for accurate fill control and easy inline integration with upstream and downstream equipment.
Its automated cycle reduces labor and cycle times while ensuring consistent fill weight, sealing quality and traceability, increasing output capacity and reducing material waste for commercial capsule manufacturers.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Main performance
● Automatic complete the packaging process, the machine cover an area of an area small, easy to operation.
● PLC control system, fully display and real-time monitoring, and can operate computer/mobile phone online "optional".
● Automatic cup, large storage warehouse, reducing frequency of manually add cup, greatly saving labor costs.
● Automatic canned, leakproof type of servo screw, high precision canning, stability test maximum plus or minus 0.2 grams.
● Automatic rim of dust removal, using the rotating test dust suction pressure, strong and beautiful and degrees of edge sealing is greatly increased.
● Automatic vacuum membrane, membrane. Nitrogen loading system, from the folling cup to seal nitrogen protection, all the products of residual oxygen can reach 5%.
● Automatic sealing, sealing of the sealing and more perfect.
● Automatic suction and release.
● Automatic recording number of product packaging.
● Fault alarm prompt functions.
● Safety dramatically improves
Technical parameters
| Model | RJ-RN4C |
| Packaging speed | 9600-14000pcs/hour |
| Motor power | 1.5KW |
| Power types | Three phase 380V 50/60HZ |
| Gas-pressure feed system | ≥0.6Mpa / 0.1㎥ 0.8Mpa |
| Overall dimensions | 2500mm×1500mm×2700mm |
| Weight | 1500kg |
